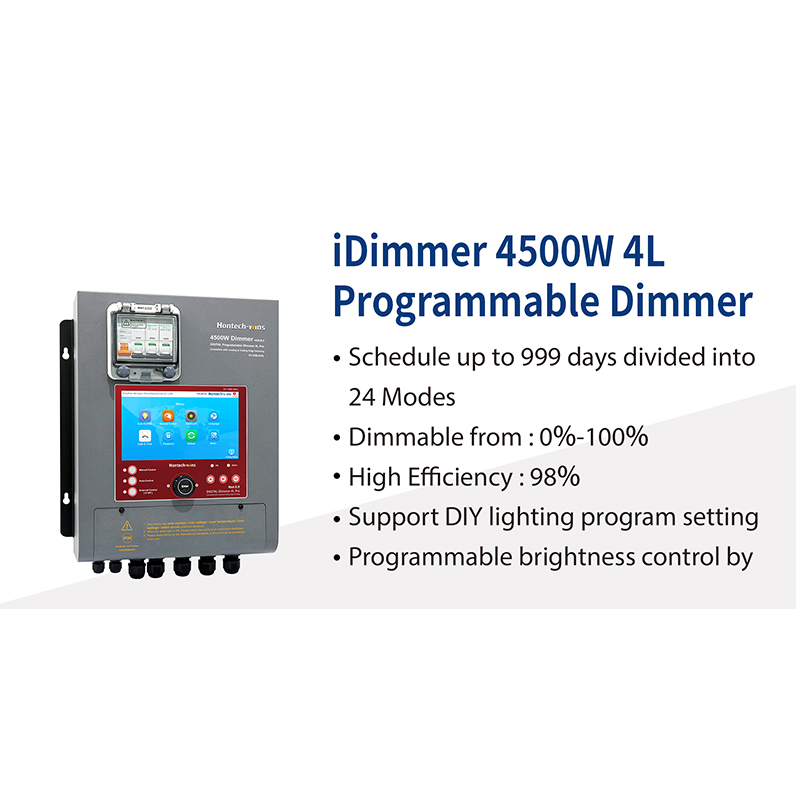

220VAC iDimmer 4500W 4L Programmable Dimmer
• Fully automatic control or manual options
• Schedule up to 999 days divided into 24 Modes
• 24hrs/Days Lighing program control
• Support DIY lighting program setting
• High Efficiency : 98%
• Dimmable from : 0%-100%
• Smooth dimming without flickering
• Programmable brightness control by
• Auto-self setting
| • With traic dimming technology: Which can acheive self-protection within 0.02S |
| • Simulate sunrise and sunset: Dimmable from 0-10% Smoothly without flicker, keep animals conformatable. |
| • With five protection: Which can prevent fire from happening and reduce risk of electric shock |
| • Auto-self setting: Farmer can set the program they need then the light will atuo ON/OFF. |
| • Long lifespan over 5000 years |
| Product name: | 4500W Programmable Dimmer |
| Model No. | HT-DIM-045L |
| AC input: | 230VAC 120VAC 50/60Hz Singel Phase |
| Input Current: | 26A Max |
| Safety： | Anti 6KV Lightning Surge Dim to 0%, No output |
| Performance： | Harmonic Current Inhibition |
| Optimal Brightness level： | 0-100% |

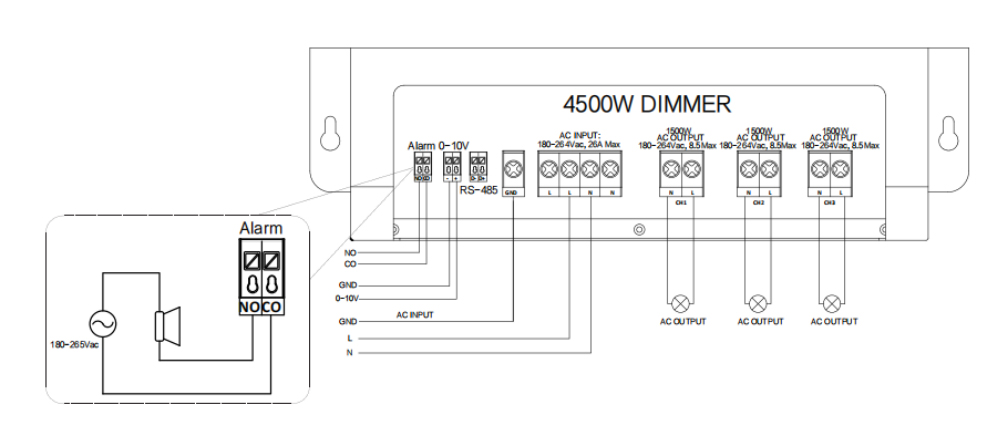

| Five Protections： | OVP (Over Voltage Protection) UVP( Under Voltage Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OCP (Over Current Protection/Short Circuit Protection) |
| Dimensions： | 354*270*70mm |
| Weight： | 5.5kg |
| Working hours: | > 50,000Hrs |
| Permitted ambient temperature: | -20℃-50℃ |
| Storage temperature: | -30℃-80℃ |
| IP Grade: | IP54 |
| External Control: | 0-10V |
| Warranty: | 5 Years |

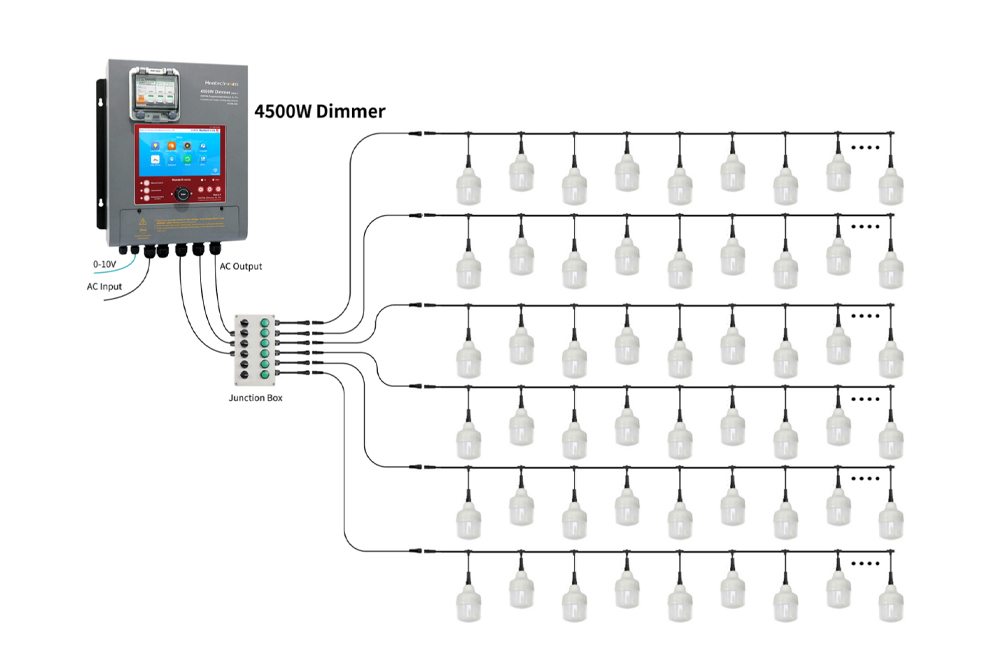

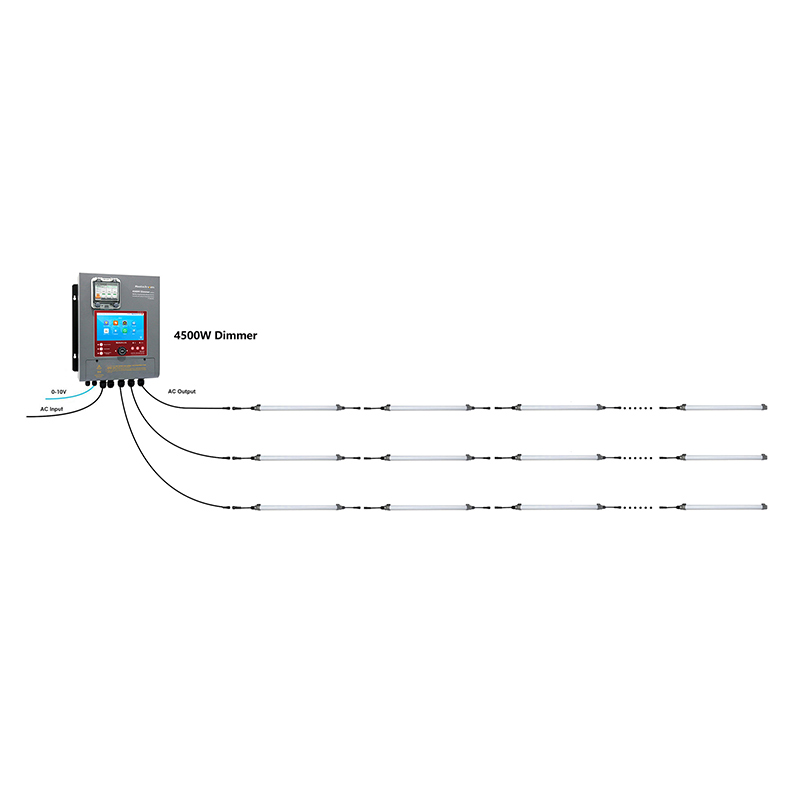

After work out the light quantity in one house, then we according the total power suggesting this iDimmer 4L Pro 4500W Dimmer, bulbs and tubes are can be controlled and can be dim from 1% to 100% to adjust the LUX on the Ground. Controlling by the dimmer, farmer can set up Its lighting program then the bulbs will Auto-change the brightness based on the lighting
program setting.
FREE LIGHTING PLAN
We are happy to offer the lighting plan for your house, Let’s know the specifications of your house and you will receive the customized lighting plan within 24Hrs
