No Voltage Drop DC48V LED Dimmable 500W Driver
•Constant voltage driver( Comply with ClassⅠ&ⅡLED Lamps)
•Universal AC input / full voltage range
•Advantages: More safer for caging and aviary system
•Active Power Factor Correction Design,
•High Efficiency, Excellent Performance
•DC48V No Voltage Drop Dimmable Driver
•Optional 48Vdc/54Vdc output voltage
•A Patent Digital Dimmable Solution. More accurate and soft.
•Natual Heat Dissipation, longer lifespan
| • 48VDC No Voltage Drop Dimmable Driver, which is more safer for caging and aviary farm |
| • Simulate sunrise and sunset: Dimmable from 0-10% Smoothly without flicker, keep animals conformatable. |
| • From the beginning to the end all lights are almost in same light intensity. @48Vdc by 1.5mm2 cable to 120M length in series @54Vdc by 1.5mm2 cable to 140M length in series |
| • Long lifespan over 5000 years |
| Product name: | No Voltage Drop DC48V LED Dimmable 500W Driver |
| Model No. | HT-PS500W48VNVD |
| AC input: | 220VAC@500W 110VAC@400W |
| DC ouput: | 48Vdc/54Vdc 0-9.3A |
| Input Current: | 9.3A Max |
| Performance： | No Voltage Drop |
| PF: | >0.98 |
| Efficiency: | 93% @220Vac 91% @110Vac |
| Optimal Brightness level： | 0-100% |
| Five Protections： | OVP (Over Voltage Protection) UVP( Under Voltage Protection) OPP (Over Power Protection) OTP (Over Temperature Protection) OCP (Over Current Protection/Short Circuit Protection) |
| Dimensions： | 354*270*70mm |
| Weight： | 1.1kg |
| Working hours: | > 50,000Hrs |
| Permitted ambient temperature: | -20℃-50℃ |
| Storage temperature: | -30℃-80℃ |
| Operation Humidity: | 20-%-90% RH non-condensing |
| IP Grade: | IP54 |
| External Control: | 0-10V |
| Certificate: | CE CB, SAA |
| Warranty: | 5 Years |

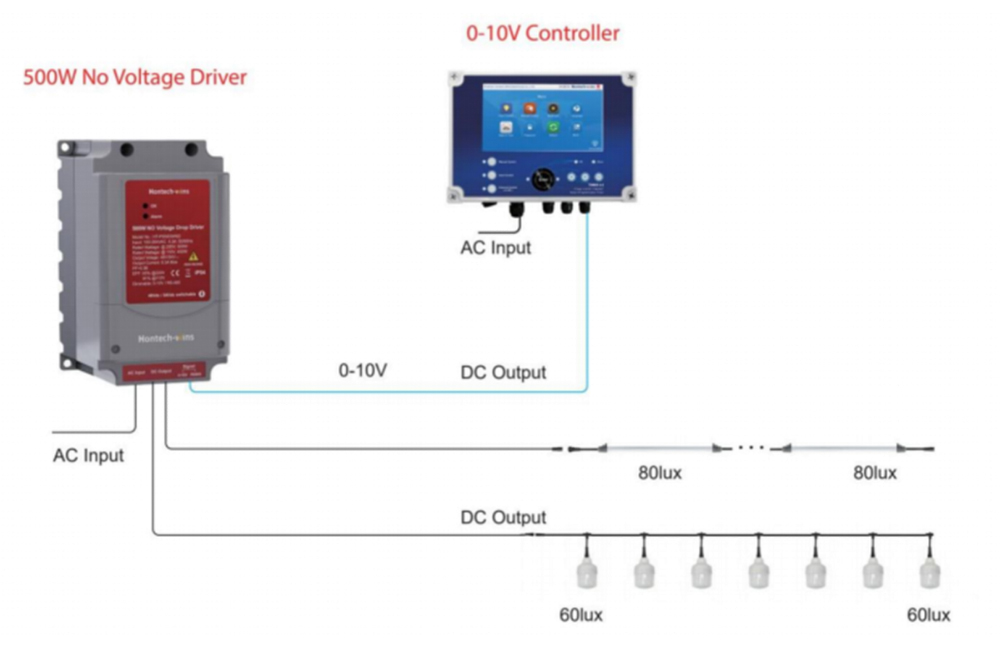

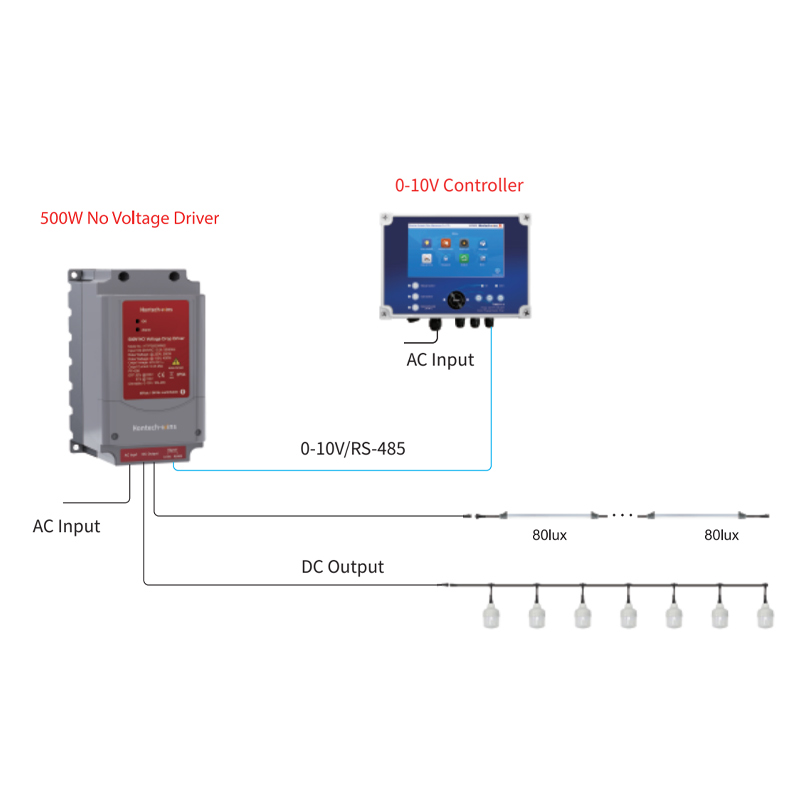

500W No voltage Dimmable Driver mainly used for caging and aviary system, work with 0-10V controller, bulbs and tubes are can be controlled and can be dim from 1% to 100% to adjust the LUX on the Ground. And from the beginning to the end, all lights are almost in same light intensity.
FREE LIGHTING PLAN
We are happy to offer the lighting plan for your house, Let’s know the specifications of your house and you will receive the customized lighting plan within 24Hrs
